CAD Files and Information¶

STEP models¶

The links below include STEP models of both the MitySOM-AM62x (fully populated with eMMC and OSPI option) as well as the Development Kit, for reference or inclusion in your design 3D models.

Description	Link
80-001614RI-2, 6254-TX-DAD-RI (MitySOM-AM62) Step Model	ZIP
80-001617RI-2, MitySOM-AM62 Development Kit Step Model	ZIP
80-001640RI-1, 62A74-TX-DAD-RI (MitySOM-AM62a) Step Model	ZIP

Altium Models¶

SODIMM DDR4 Connector Symbol and Footprint¶

The MitySOM_SODIMM_DDR4_22.10.25.zip download includes an Altium Integrated Library, Library Package, Schematic Library, and PCB Library file for the SODIMM DDR4 connector as used for the following SOMS:

- MitySOM-AM62x
- MitySOM-AM62Ax
- MitySOM-AM62Px
- MitySOM-C10L
- MitySOM-C10G

The schematic library symbol provides multiple presentation modes that show the specific SOM pin assignments, etc., for the given SOM as is seen on the development kit schematics.

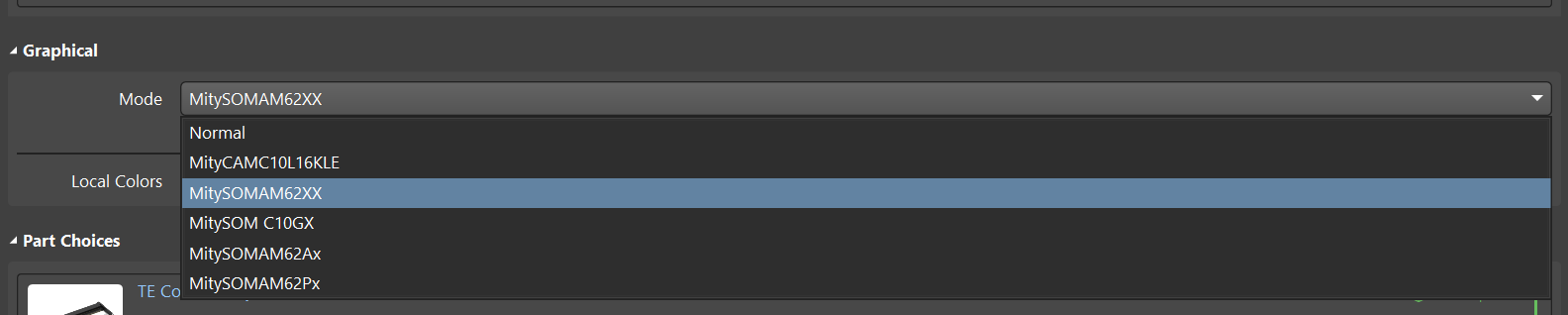

If you place the component from the integrated library onto your schematic, you can choose the symbol to be viewed by selecting the mode from the Graphical Section of the component on the Properties tab as shown in the figure below:

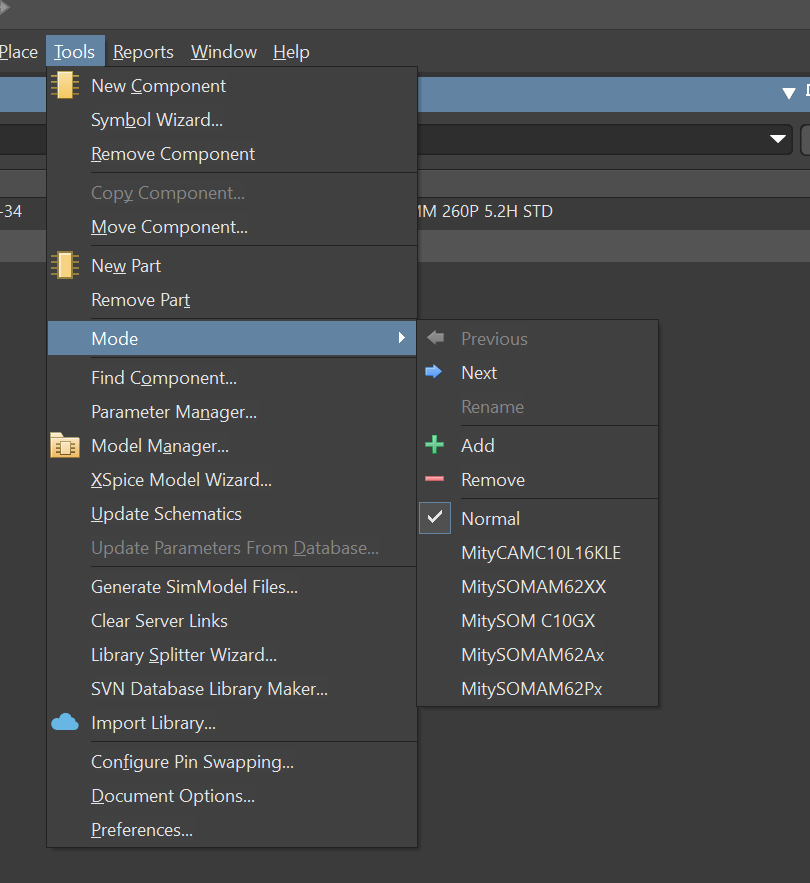

If you are in the schematic library editor in Altium, select the symbol and select the tools->mode menu and select the option that you would like shown:

There are 2 footprints provided. One includes the location of the PEM nut / mounting hole for the MitySOM-AM62x/Ax/Px family of devices.

If you need assistance exporting the symbols to a different CAD tool, please contact Critical Link LLC.

Development Kit¶

Altium design files, gerbers, and BOM data for the MitySOM-AM62 Development Kit can be provided upon request. Please email support@criticallink.com or sales@criticallink.com for assistance or contact Critical Link at +1-315-425-4045.

Critical Link does not provide CAD data for the SOM.
